CS637 Homework 2, HTML5, CSS, PHP Netbeans project, Smartphones

Due Monday, Oct 5, on Gradescope by 11pm.

Edit in yellow.

1.  HTML forms. Study this forms tutorial at http://www.w3schools.com (stop before the HTML5 Attributes part of the HTML Input Attributes chapter) as well as Duckett Chap. 1-7. Note that <input type="image" name="aaa" ...> buttons will send in parameter values aaa.x=x-coord and aaa.y = y-coord (in px) of the image.
 Visit http://boulter.com/ttt for a tic-tac-toe game with HTML user interface.
   a. Start playing, and then look at the page source.  Explain how the Xs and Os are displayed.
   b. How does the server know which square you clicked on? Specifically, what parameter names and values are sent back to the server if you click on the upper left corner square as the first move as O? Hint: use "View Page Source" on the page before clicking on the square to see the HTML that will produce the parameters. The image involved is at x=22px, y=19 px for example, reported back to the server by this image input form element along with the name assigned, for example 0.x=22, 0.y=19 for this case. You can get these parameters from Chrome inspect>Network (refresh the page after this). Then select the index.cgi request and the "Headers" tab for it.
   c. How many client-server round trips are needed to display this page? This question can also be answered by looking at Chrome inspect>Network and seeing how many requests are shown.
   d. Observe how the cursor changes shape as you move the mouse around. What software is handling the moment-to-moment cursor painting?  Look at the HTML source. How are the various areas for special cursors specified by the HTML? That is, what HTML elements correspond to what cursor shapes?
  e. Do another move, note that the computer moves right away, but nothing ever happens after that until you do something. You can wait hours, and meanwhile hundreds of other users can be playing.  Where is the knowledge of your current position (X's and O's) kept all this time?  To answer this puzzle, look at the source, after a move and again after another move, and see how about hidden form fields can save state for an application.
  f. Is this HTML in HTML5 format? Find a tag in the body that is now obsolete because it puts presentation in the HTML itself. What is the HTML5 status of the address tag used near the bottom? Find an HTML attribute in the body that is now obsolete because it puts presentation in the HTML itself. Hint: look at slides 64-65 for the second class about "OLD CODE", from Duckett, pp 103-104.

2. Form Alignment. Use a plain editor like emacs or Wordpad to compose a web page register.html with page title "User Registration", contents entitled "Register for This Website", and a form, specifying name and email addresses in a text boxes, one above the other, with text to the left of each box "Name" and "Preferred Email", and a having a submit button.  Include the text of register.html and its display from a browser in your homework submission.  Note that we can't make this form work yet, just see it display itself. Don't use CSS here, so you can see the problem with alignment caused by the fact that we can't specify the width of the text even if we put it in a <span> or <label> because these inline elements can't have width specified.  This is a well-known problem. See slides 50-57 and 134-140 in class 4's slides. See Duckett example online, which tries and fails (at least with Chrome) to solve this problem using CSS. See Murach's ch01 example, (link is using tunnel to pe07) which is successful across several browsers.  With proper CSS, we can fix this, as explained in the slides. Explain in your own words how your would use CSS to style your form to solve this problem.

3. a. Download all the book apps from Murach book site (see "Free Downloads") and copy them in your XAMPP htdocs directory, so that htdocs/book_apps/ch01_product_discount exists. Verify you can run it with Chrome using the local URL http://localhost/book_apps/ch01_product_discount/. Report on your success or problems.
b. Create a PHP project for this app in Netbeans.  Read M&H pp. 34-39 (either ed.).  Note that these projects come with Netbeans project files, so you can just "Open Project" rather than setting up a project from scratch, although it's good to be able to do that too. Try running the app from Netbeans. Report on your success or problems.

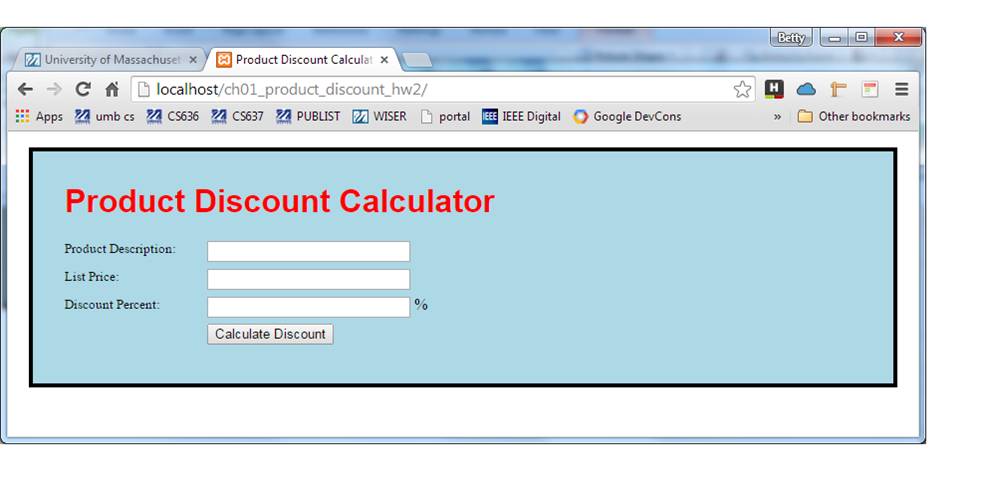

4. CSS Consider the index.html of pg. 17 (either ed), now (after you do problem 3a) available at http://localhost/book_apps/ch01_product_discount/ , where it is displayed using the book's main.css, shown on pg. 19. I've used a different main.css to display it as follows in Chrome, our standard browser:
Note the following: different colors, different font styles, different font sizes, wider overall (800px), more space around contents, wider border. Write a CSS file that shows at least approximately this display and show it in your paper. Unfortunately, Linux Chrome does not display the original HTML/CSS correctly (the border is not right), but do your best. Windows and Mac Chrome are OK for this.
b. If you have a Windows system, describe how the original ch01 page shows in your version of Internet Explorer, and give the version of IE in use. If you have Linux, try out Firefox on it, and if a Mac, Safari, and similarly describe the result.

5. Smartphones vs. computers. Visit https://nytimes.com (preferably with Chrome, but note any other browser) on your computer (using a large window) and also on your smartphone and compare the experiences.

a. How many news stories (approximately anyway) show up in each case on the first display? Scroll down past any ad at the beginning for this. How many columns of text/images are in use (maximum value)?

b. How do you navigate to World news in each case?  Give the minimal sequence of user actions. Note the "hamburger" with three horizontal bars on the smartphone (and computer) display, indicating further options available to you, but don't use it in the computer case.

c. View the source of the page on your computer: how many @media rules are there?  To find out, display the page source and use control-F on Windows or command-F on Mac and search for "@media": Chrome will display the count. What are these rules testing about the display (the most common case)? Similarly find the number of links by looking for "</a>". Similarly look for new HTML5 elements <section> and <figure>. These numbers may vary day-to-day.

d. On your computer, try narrowing your window and watch the format change several times.  At some point the <nav> bar disappears and leaves only the hamburger.  Estimate this transition width, known as a breakpoint. To measure the width, use Responsive Viewport Mode in Chrome Inspect as follows. In Chrome Inspect, click the icon (a little smartphone and pad) to enable the viewport UI, then see "Responsive" selected at the top of screen, above the page itself. The current viewport dimensions will be to the right of this, and you can resize the window as desired.

e. Visit dominos.com. How many images show up from left to right in a wide screen, in a narrow screen? What is the breakpoint where the nav bar disappears for this site? To find the @media queries you need to follow the links to the css files (optional). This is a more "normal" site than nytimes.com, which obviously inherits its wide-screen design from the print edition. But both sites are responsive, that is, run by the same top-level HTML for all devices. Dominos has some text graphics in index.html (scan down the page after doing view-source).
